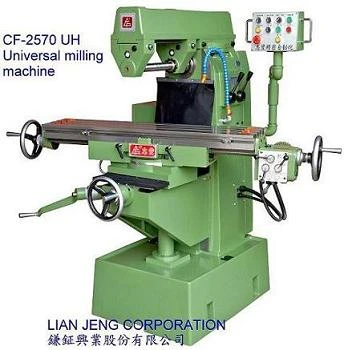

萬能銑床Universal milling machine Model型號CF-2570H/UH CF-2570VH/VHU
|
Model型號 |
CF-2570H/UH |
CF-2570VH/VHU |
||
|
工作臺Table |
||||
|
Working surface(L×W)面積 |
1100x250mm |
|||
|
Table travel(X/Y/Z)行程 |
700(Power feed:600)x280(Rotary table:270)x485(Rotary table:385)mm |
|||
|
T-slots T型槽 |
3-16 mm x 60 mm |
|||
|
Range of longitudinal feed speed (mm/min) 左右自動進刀 (選配 / opt.) |
30-825mm/min (9段 / 9steps) |
|||
|
Range of longitudinal rapid speed (mm/min) 左右自動快送 (選配 / opt.) |
1300mm/min |
|||
|
Vertical Spindle立主軸 |
||||
|
Spindle nose 主軸錐度 |
--- |
N.T.#40 |
||
|
Spindle speed(8steps)R.P.M轉速 |
210,420,690,980,1380,1720,1960,3440 (60Hz) |
|||
|
170,340,570,810,1140,1430,1620,2860 (50Hz) |
||||
|
Distance from spindle end to table top 主軸端到工作臺面距離 |
80-565mm |
|||
|
Distance from spindle center to column 主軸中心到機柱面距離 |
150-500mm |
|||
|
Vertical travel of quill通心軸移動量 |
125mm |
|||
|
Swiveling angle of head(right & left) 銑頭傾斜角度(左右各) |
90° |
|||
|
Cross travel of ram伸出臂移動量 |
350mm |
|||
|
Horizontal rotation angle or ram 水平旋轉角度 |
360° |
|||
|
Horizontal Spindle橫主軸 |
||||
|
Spindle nose主軸錐度 |
N.T.#40 |
|||
|
Spindle speed(6 steps)R.P.M轉速 |
50-1180 (60Hz) |
|||
|
40-980 (50Hz) |
||||
|
Distance from spindle center to table top 主軸中心到工作臺面距離 |
0-485(Rotary table:385)mm |
|||
|
Distance from spindle center to ram bottom 主軸中心至伸出臂底面距離 |
115mm |
|||
|
Motors馬達 |
||||
|
For vertical spindle立主軸 |
--- |
2.2KW(3HP)-4/8P |
||
|
For Horizontal spindle橫主軸 |
2.2KW(3HP)-4P |
|||
|
For table feed工作臺進給 (opt.) |
0.375KW(1/2HP)-4P |
|||
|
For cutting fluid pump切削液體泵用 |
0.1KW(1/8HP)-4P |
|||
|
Size of machine尺寸 |
||||
|
Net weight淨重 (approx.) |
1,200kg |
1,300kg |
||
|
Dimensions of machine機械尺寸 |
1190x1720x1650mm |
1500x1720x2190mm |
||
|
Dimensions of packing case裝箱尺寸 |
1160x1600x1780mm |
1380x1600x1950mm |
||
|
Standard Accessories標準配備 |
||||
|
Lubrication system 潤滑油系統 1set |
Coolant device 冷卻裝置 1 set |
|||
|
Horizontal cutter arbor臥銑刀桿 1 set |
Horizontal cutter sleeve臥銑刀桿套筒 1 set |
|||
|
Adjusting tools & tool box工具及工具箱 1 set |
Table power feed-400W進刀器 1 set |
|||
|
Rotary table 旋轉工作臺 |
|
|||
|
Optional Accessories選購配備 |
||||
|
Working light工作燈 |
Digital readout光學尺 |
|||
|
Waterproof dish防水盤 |
|
|||
