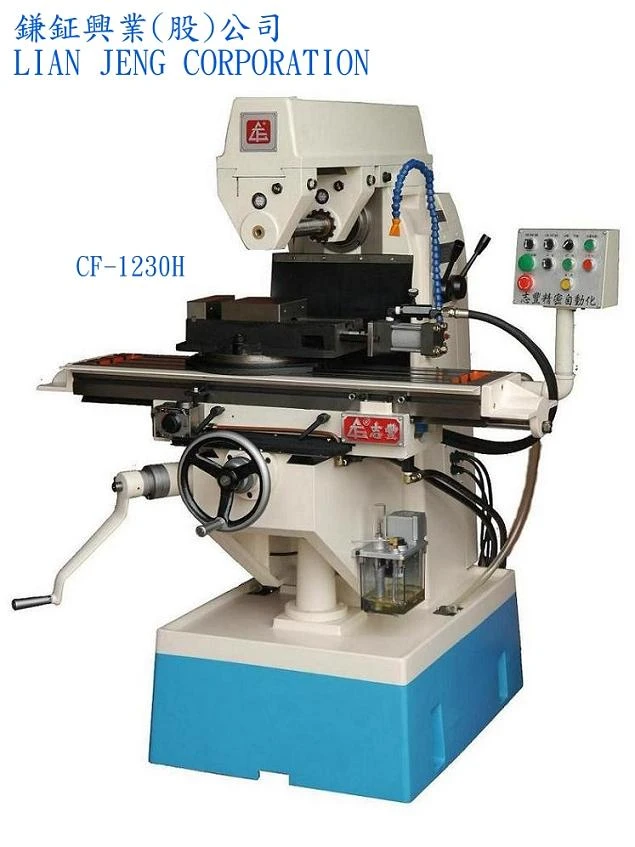

Model型號 |
CF-1230H |
CF-1230VH |
||
|
Table工作臺 |
||||
|
Working surface(L×W)面積 |
1000x230mm |
|||
|
Table travel(X/Y/Z)行程 |
500x230x385mm |
|||
|
T-slots T型槽 |
3-16mm x 60mm |
|||
|
Vertical Spindle 立主軸 |
||||
|
Spindle nose 主軸錐度 |
|
N.T.#40 |
||
|
Spindle speed(8steps)R.P.M轉速 |
210,420,690,980,1380,1720,1960,3440 (60Hz) |
|||
|
170,340,570,810,1140,1430,1620,2860 (50Hz) |
||||
|
Distance from spindle end to table top 主軸端到工作臺面距離 |
50-535mm |
|||
|
Distance from spindle center to column 主軸中心到機身面距離 |
150-450mm |
|||
|
Vertical travel of quill通心軸移動量 |
125mm |
|||
|
Swiveling angle of head(right & left) 銑頭傾斜角度(左右各) |
90° |
|||
|
Cross travel of ram伸出臂移動量 |
230mm |
|||
|
Horizontal rotation angle or ram水平旋轉角度 |
360° |
|||
|
Horizontal Spindle橫主軸 |
||||
|
Spindle nose主軸錐度 |
N.T.#40 |
|||
|
Spindle speed(6 steps)R.P.M轉速 |
50,120,210,320,470,1180 (60Hz) |
|||
|
40,100,170,260,390,980 (50Hz) |
||||
|
Distance from spindle center to table top 主軸中心到工作臺面距離 |
0-470mm |
|||
|
Distance from spindle center to ram bottom 主軸中心到伸出臂底面距離 |
115mm |
|||
|
Motors馬達 |
||||
|
For vertical spindle立主軸 |
|
1.5KW(2HP)-4/8P |
||
|
For Horizontal spindle橫主軸 |
1.5KW(2HP)-4P |
|||
|
For table feed工作臺進給 |
1.5KW(2HP)-4P |
|||
|
For cutting fluid pump切削液體泵用 |
0.1KW(1/8HP)-4P |
|||
|
Size of machine尺寸 |
||||
|
Net weight淨重 (approx.) |
1,000kg |
1,200kg |
||
|
Dimensions of packing case裝箱尺寸 |
1150x1150x1670mm |
1150x1205x1700mm |
||
|
Standard Accessories標準配備 |
||||
|
Auto lubrication system自動潤滑油系統 1set |
Coolant device冷卻裝置 1set |
|||
|
Horizontal cutter arbor臥銑刀桿 1pcs |
Horizontal cutter sleeve臥銑刀桿套筒 1set |
|||
|
Table water splash guard工作臺防水盤 1set |
Adjusting tools & tool box工具及工具箱 1set |
|||
|
Optional Accessories選購配備 |
||||
|
Working light 工作燈 |
Hydraulic milling vise 6" 油壓虎鉗 |
|||
|
Hydraulic chuck 5" 油壓卡盤 |
|
|||
