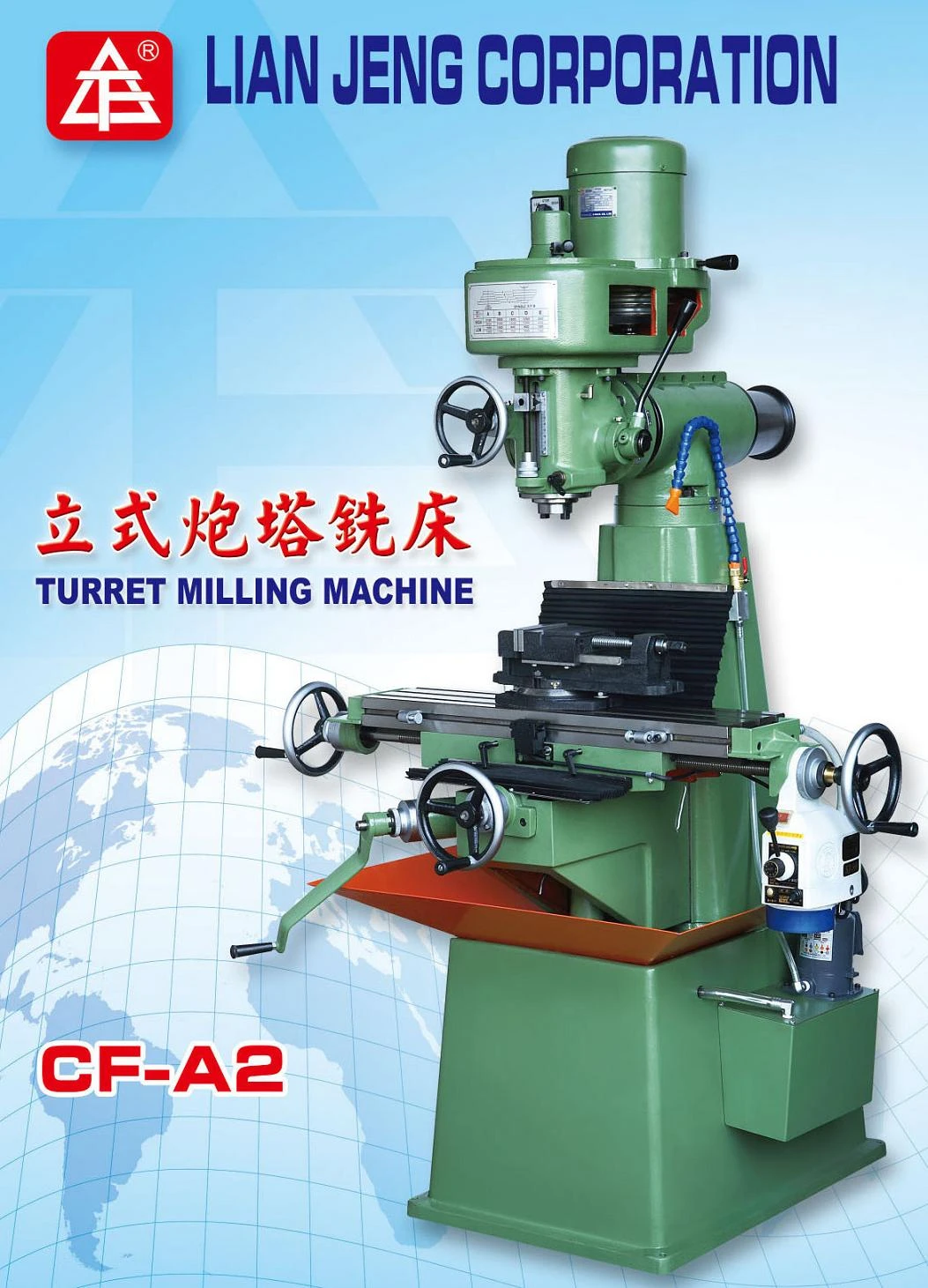

Table工作臺 |
|
|||
|
Working surface(length*Width) 面積 |
760x180mm |
|
||
|
Traveling (X / Y / Z) 行程 |
480x200x350mm |
|
||
|
T-Slots T型槽 |
3-14mm x 54mm |
|
||
|
Vertical Spindle 主軸 |
||||
|
Spindle nose 主軸錐度 |
N.T.#30 |
|
||
|
Spindle speeds (R.P.M.) 轉速 |
180, 360, 600, 900, 1200, 1400, 1590, 1800, 2800, 3180(60Hz) |
|
||
|
150, 300, 500, 750, 1000, 1160, 1320, 1500, 2330, 2650(50Hz) |
|
|||
|
Distance from spindle end to table top 主軸端到工作臺面距離 |
50-350mm |
|
||
|
Vertical travel of quill通心軸移動量 |
80mm |
|
||
|
Swiveling angle of head(right & left) 銑頭傾斜角度 |
90° |
|
||
|
Cross travel of ram 伸出臂移動量 |
180mm |
|
||
|
Horizontal rotation angle of ram水平旋轉角度 |
360° |
|
||
|
Motors 馬達 |
||||
|
For vertical spindle 立主軸 |
0.75KW(1HP)-4P/8P |
|
||
|
For table feed 工作臺進給 (opt.) |
0.1KW(1HP)-4P |
|
||
|
For cutting fluid pump 切削液體泵用 (opt.) |
0.1KW(1/8HP)-4P |
|
||
|
Size of machine 尺寸 |
||||
|
Net weight淨重 (approx.) |
500kg |
|
||
|
Dimensions of packing case 裝箱尺寸 |
1100x1250x1600mm |
|
||
|
Standard Accessories標準配備 |
|
|||
|
Lubrication system潤滑油系統 |
|
|||
|
Optional Accessories選購配備 |
|
|||
|
Working light工作燈 |
Coolant device冷卻裝置 |
|
||
|
Waterproof dish防水盤 |
Power feed (110V) 進刀器 |
|
||
|
Digital readout光學尺 |
220V->110V Transformer變壓器 |
|
||
